Description
Made in The USA
Piranhaflex™

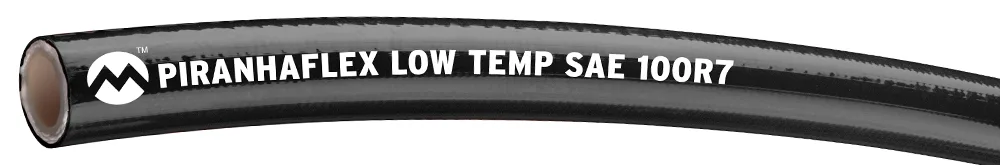

Piranhaflex™ Series PFLT364 – Low Temp
Request for quote
- Download Product Catalog Page
- Quality and Advantages - Piranhaflex
- One-Piece and Two-Piece Ferrules/Fittings
- P400 Portable Service Crimper and P402 Tooling
- Hose Cutters Download Product Catalog Page
- Hose and Fitting Compatibility
- Cautionary and Warranty Statement
Additional information
| ID | 1/4 in, 6.4 mm, 3/8 in, 9.7 mm, 1/2 in, 13.1 mm |
|---|---|
| OD | 0.496 in, 12.6 mm, 0.650 in, 16.5 mm, 0.834 in, 21.2 mm |
| Weight | 0.06 lbs/ft, 0.11 lbs/ft, 0.16 lbs/ft |
| Size Code | 04, 06, 08 |
| Min. Bend Radius | 1.50 in, 38.1 mm, 2.00 in, 50.8 mm, 3.00 in, 76.2 mm |
| Max. Working Pressure | 2750 psi, 2250 psi, 2000 psi |
| Coupling Recommendations Two-Piece Couplings Ferrule Non-Skive | PFR-04, PFR-06, PFR-08 |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Seamless Copolyester Inner Tube. |
| Type | Hydraulic Hose |
| Brand | Piranhaflex™ |
| Color | Black |
| Cover | PFLT364 Series has a Black Copolyester Pin Pricked Abrasion Resistant Cover. |
| Style | Braided |
| Series | PFLT364 |
| Packaging | Hoses supplied in 250 ft. reels. All reels will have no more than 2 pieces, with no piece less than 50' in length. All specials are treated as a made-to-order item and will require a minimum of 5,000 ft. to produce. |
| Reel Length | 250 ft |
| Construction | Piranhaflex™ PFLT364 Series consists of three individual components bonded to ensure maximum performance. |
| Reinforcement | Braided High Tensile Strength Fiber Reinforcement. |
| category_path | 100R7 Hydraulic Hose |

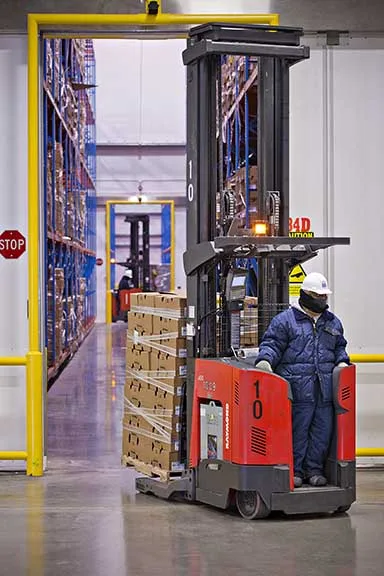

| General Applications | Piranhaflex™ PFLT364 Series is the ideal hose for medium pressure hydraulic lines commonly used on Fork Trucks to extend hose service life in cold storage applications. Twin/Multi Line MTO are available upon request. |
| Features and Advantages | Meets or exceeds SAE J517 & J343 Standards Tested at 1/2 the bend radius under SAE J517 100R7 Standards Exceeds SAE100R7 impulse requirements Light weight and flexible Improved cold temperature flexibility A special copolyester inner tube and cover provides superior low temperature flexibility. |
| Service Temperature Range | -65 ºF (-65 ºC) to +200 ºF (+93 ºC) for Petroleum Based Hydraulic Fluids. -65 ºF (-65 ºC) to +200 ºF (+93 ºC) for Water-based And Phosphate-ester Based Hydraulic Fluids. |
| Temperature | -65 °F (-65 °C) to +200 °F (+93 °C) for Petroleum Based Hydraulic Fluids. -65 °F (-65 °C) to +200 °F (+93 °C) for Water-based And Phosphate-ester Based Hydraulic Fluids. |
