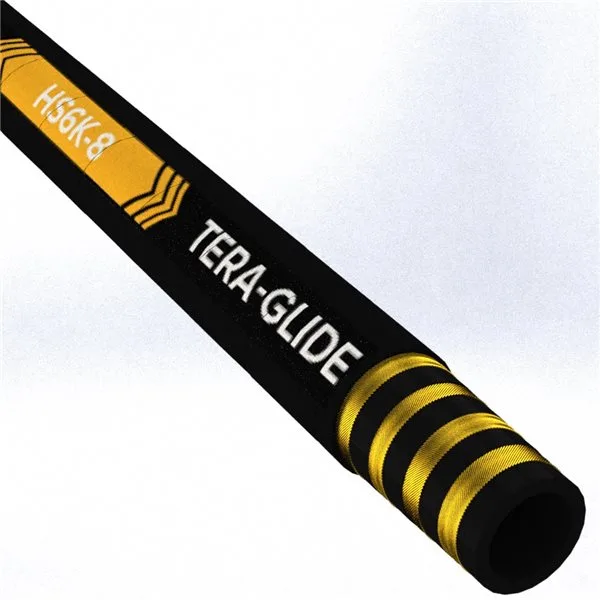

Extremely high pressure compact four spiral high abrasion resistance hydraulic hose. HS6K provides exceptional flexibility, rated to 1 million impluse cycles for the first two sizes at 1/2 minimum bend radius compared to SAE or DIN hoses.
| Fittings | F4, F6 |
|---|---|
| O.D. (mm) | 23.0 |
| I.D. (inch) | 1/2" |
| O.D. (inch) | .91 |
| Weight (Kg/mt) | .85 |
| Weight (lbs/ft) | .57 |
| Bend Radius (mm) | 90 |
| Bend Radius (inch) | 3.5 |
| Burst Pressure (bar) | 1680 |
| Burst Pressure (psi) | 24400 |
| Working Pressure (bar) | 420 |
| Working Pressure (psi) | 6100 |
| Pressure | 6,092 psi |
