Description

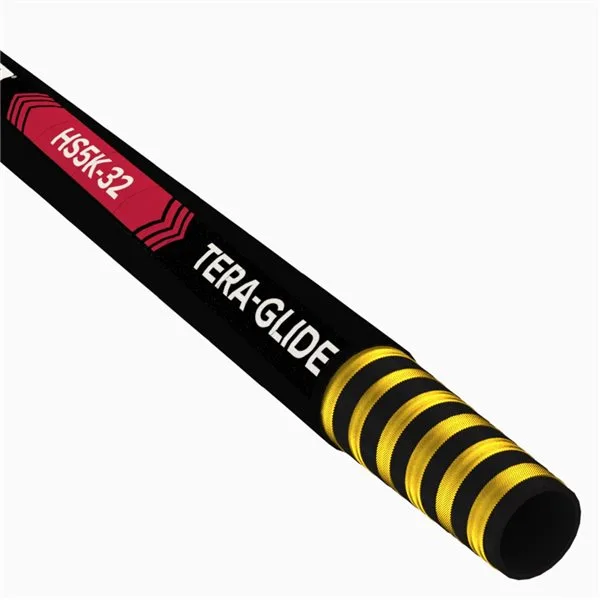

Very high pressure compact six spiral high abrasion resistance hydraulic hose. HS5K provides exceptional flexibility, rated to 1 million cycles at 1/2 minimum bend radius compared to SAE or DIN hoses.
Additional information
| Fittings | F4, F6 |
|---|---|
| O.D. (mm) | 72 |
| I.D. (inch) | 2" |
| O.D. (inch) | 2.83 |
| Weight (Kg/mt) | 6.93 |
| Weight (lbs/ft) | 4.66 |
| Bend Radius (mm) | 400 |
| Bend Radius (inch) | 24.8 |
| Burst Pressure (bar) | 1400 |
| Burst Pressure (psi) | 20400 |
| Working Pressure (bar) | 350 |
| Working Pressure (psi) | 5100 |
| Pressure | 5,076 psi |
