Piranhaflex™

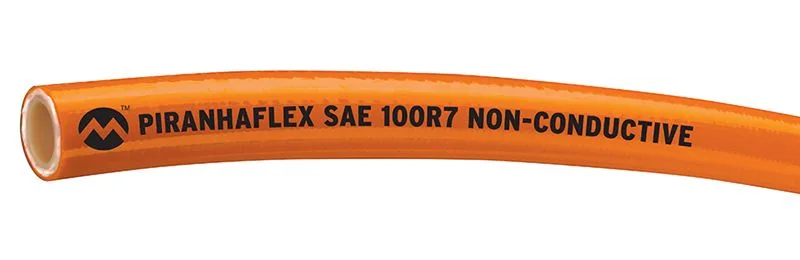

Piranhaflex™ Series PF354NC
Request for quote
- Download Product Catalog Page
- Quality and Advantages - Piranhaflex
- One-Piece and Two-Piece Ferrules/Fittings
- P400 Portable Service Crimper and P402 Tooling
- Hose Cutters Download Product Catalog Page
- Hose and Fitting Compatibility
- Piranha Bonding Capabilities
- Cautionary and Warranty Statement
Additional information
| ID | 1/8 in, 3.6 mm, 3/16 in, 4.8 mm, 1/4 in, 6.4 mm, 5/16 in, 8.1 mm, 3/8 in, 9.7 mm, 1/2 in, 13.1 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm |
|---|---|
| OD | 0.322 in, 8.2 mm, 0.415 in, 10.5 mm, 0.496 in, 12.6 mm, 0.580 in, 14.7 mm, 0.650 in, 16.5 mm, 0.834 in, 21.2 mm, 1.050 in, 26.7 mm, 1.360 in, 34.5 mm |
| Weight | 0.03 lbs/ft, 0.05 lbs/ft, 0.06 lbs/ft, 0.08 lbs/ft, 0.11 lbs/ft, 0.16 lbs/ft, 0.22 lbs/ft, 0.35 lbs/ft |
| Size Code | 02, 03, 04, 05, 06, 08, 12, 16 |
| Min. Bending Radius | 0.75 in, 19 mm, 1.50 in, 38 mm, 1.75 in, 44 mm, 2.00 in, 51 mm, 3.00 in, 76 mm, 6.00 in, 152 mm, 3.00 in, 203 mm |
| Max. Working Pressure SAE (SF: 4:1) | 3000 psi, 2750 psi, 2500 psi, 2250 psi, 2000 psi, 1250 psi, 1000 psi |
| Coupling Recommendations One-Piece Carbon Steel | P-02XX-XXXX, P-04XX-XXXX, P-05XX-XXXX, P-06XX-XXXX, P-08XX-XXXX |
| Coupling Recommendations One-Piece Stainless Steel | P-03XX-XXXX-SS, P-04XX-XXXX-SS |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | PFR-03, PFR-04, PFR7-05, PFR-06, PFR-08, PFR-12, AFX-16 |
| Tube | Nylon |
| Type | Medium Pressure Hydraulic Hose |
| Brand | Piranhaflex™ |
| Color | Orange |
| Cover | Abrasion resistant polyurethane. Available with non-conductive orange cover. |
| Style | Braided |
| Length | 250 ft |
| Series | PF354NC |
| Packaging | • Boxed 250' reels or boxed 50' coils. • No more than two pieces per 250' reel. No piece less than 50'. |
| Performance | Medium Pressure Hydraulic Hose Applications |
| Reinforcement | Braided high tensile strength fibers |
| category_path | 100R7 Hydraulic Hose |
| Approved Fittings | P Series One-Piece Carbon Steel P Series One-Piece Stainless A Series Two-Piece (PFR ferrule) |
| Compliance Details | Compliances Size ANSI A92.2^ (1/8" to 1/2") REACH All sizes SAE 100R7 All sizes SAE J517 All sizes ^For vehicle mounted aerial devices |
| General Applications | Industrial equipment and vehicles (construction, agriculture, material handling, etc.) Aerial equipment Hydraulic oil and lubrication lines |
| Features and Advantages | Abrasion Resistant – Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight – Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex – Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. Meets ANSI A92.2 – Meets ANSI insulating requirement for aerial devices used in areas of high electricity. Tested to less than 50 microamperes leakage when subjected to 75,000 volts/ft. for 5 min. |
| Service Temperature Range | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
| Temperature | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
