Description
Double wire braid high temperature hydraulic hose (Up to +300 ºF) – TR2HT Meets or exceeds SAE 100 R2AT – EN 853 2SN Meets or exceeds the requirement of SAE J517 100R2Type AT – EN 853 2SN
ALFAGOMMA®

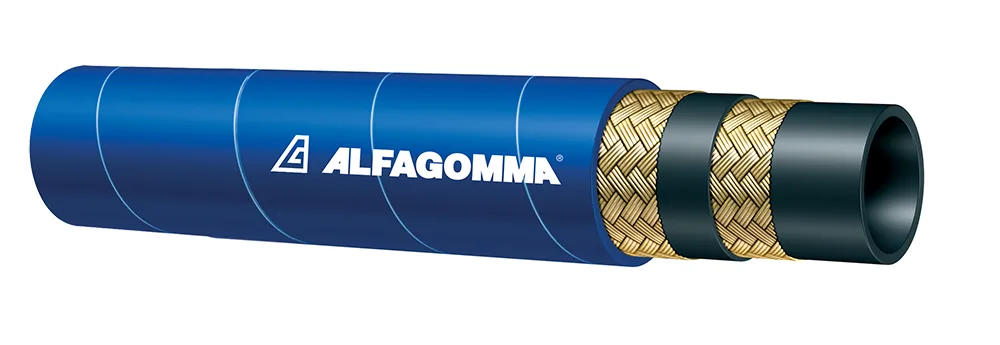

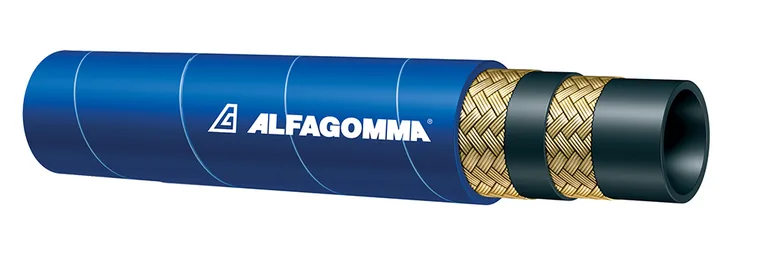

High Temp TR2HT 2SN/R2AT Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Temp Tech Information
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 1/4 in, 6 mm, 5/16 in, 8.0 mm, 3/8 in, 9.5 mm, 1/2 in, 12.7 mm, 5/8 in, 15.9 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm, 1 1/4 in, 31.8 mm, 1 1/2 in, 38.1 mm, 2 in, 50.8 mm |
|---|---|
| OD | 0.57 in, 14.5 mm, 0.63 in, 16.1 mm, 0.720 in, 18.2 mm, 0.84 in, 21.3 mm, 0.96 in, 24.5 mm, 1.13 in, 28.6 mm, 1.44 in, 36.6 mm, 1.81 in, 46 mm, 2.08 in, 52.8 mm, 2.58 in, 65.6 mm |
| Weight | 0.22 lbs/ft, 0.23 lbs/ft, 0.32 lbs/ft, 0.36 lbs/ft, 0.45 lbs/ft, 0.58 lbs/ft, 0.83 lbs/ft, 1.19 lbs/ft, 1.37 lbs/ft, 1.86 lbs/ft |
| Size Code | 04, 05, 06, 08, 10, 12, 16, 20, 24, 32 |
| Min. Bend. Radius | 4.0 in, 100 mm, 4.6 in, 115 mm, 4.9 in, 124.5 mm, 6.8 in, 172.7 mm, 7.8 in, 198.1 mm, 9.4 in, 238.8 mm, 11.8 in, 299.7 mm, 16.5 in, 419.1 mm, 19.6 in, 497.8 mm, 24.8 in, 629.9 mm |
| Max. Working Pressure | 5800 psi, 5000 psi, 4800 psi, 4000 psi, 3630 psi, 3120 psi, 2400 psi, 1820 psi, 1310 psi, 1200 psi |
| Coupling Recommendations AlfaCrimp One-Piece | B, B, D, D |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Black tube, specifically compounded for temperature and chemical resistance, oilresistant. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Color | Blue |
| Cover | Synthetic rubber, blue… weather, oil, fuel, ozone and abrasion-resistant. |
| Series | TR2HT |
| Branding | ALFAGOMMA® High Temp 2AT/2SN ID … WP …MPa (…PSI) – SAE 100R2AT – EN 853 2SN DN …Q/YR |
| Reinforcement | Two high tensile steel wire braids. |
| category_path | High Temp Hydraulic Hoses |
| General Applications | Wherever low or continuous high temperatures or fluid compatibility is a problem, this high quality, high performance hose solves the problem. Also ideal for use where greatly extended service life under "normal" conditions is desired. |
| Air Temperature [Max] 1 | 250 ºF, 121 ºC |
| Max. Working Pressure 2 | 5800 psi |
| Operation Temperature [Max] | 300 ºF, 150 ºC |
| Constant Operation Service Temperature Range | -40 to 300 ºF, -40 to 150 ºC |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AF2 |
| Temperature | ≤ 300 °F |
