Description
Single wire braid high temperature hydraulic hose (Up to +300 ºF) – TR1HT Meets or exceeds SAE 100 R1AT – EN 853 1SN Meets or exceeds the requirement of SAE J517 100R1 Type AT – EN 853 1SN
ALFAGOMMA®

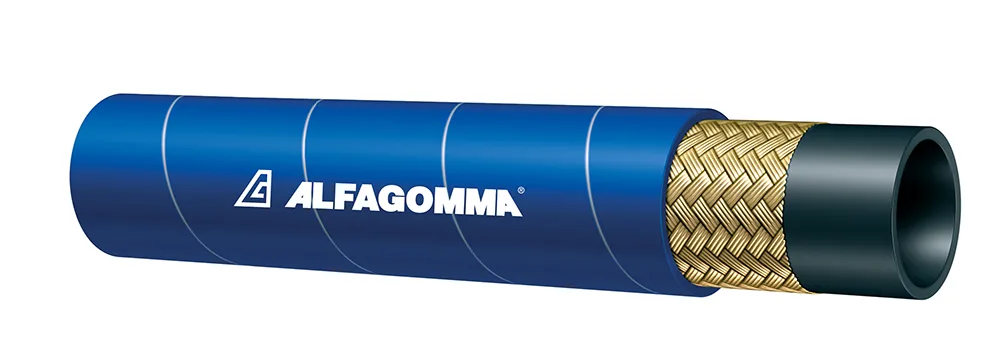

High Temp TR1HT 1SN/R1AT Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Temp Tech Information
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 3/16 in, 4.8 mm, 1/4 in, 6.4 mm, 5/16 in, 7.9 mm, 3/8 in, 9.5 mm, 1/2 in, 12.7 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm, 1 1/4 in, 31.8 mm, 1 1/2 in, 38.1 mm, 2 in, 50.8 mm, 5/8 in, 15.9 mm |
|---|---|
| OD | 0.440 in, 11.2 mm, 0.50 in, 12.7 mm, 0.56 in, 14.2 mm, 0.65 in, 16.5 mm, 0.78 in, 19.9 mm, 1.06 in, 27 mm, 1.38 in, 35 mm, 1.66 in, 42.1 mm, 1.94 in, 49.2 mm, 2.46 in, 62.4 mm, 0.91 in, 23 mm |
| Weight | 0.10 lbs/ft, 0.13 lbs/ft, 0.16 lbs/ft, 0.20 lbs/ft, 0.26 lbs/ft, 0.37 lbs/ft, 0.59 lbs/ft, 0.71 lbs/ft, 0.90 lbs/ft, 1.24 lbs/ft, 0.29 lbs/ft |
| Size Code | 03, 04, 05, 06, 08, 12, 16, 20, 24, 32, 10 |
| Min. Bend. Radius | 3.6 in, 90 mm, 3.9 in, 99.1 mm, 4.5 in, 114.3 mm, 5.1 in, 129.5 mm, 7.1 in, 180.3 mm, 9.5 in, 241.3 mm, 11.8 in, 299.7 mm, 16.5 in, 419.1 mm, 19.7 in, 500.4 mm, 24.8 in, 629.9 mm, 7.9 in, 200.7 mm |
| Max. Working Pressure | 3630 psi, 3250 psi, 3120 psi, 2610 psi, 2320 psi, 1530 psi, 1280 psi, 920 psi, 730 psi, 600 psi, 1900 psi |
| Coupling Recommendations AlfaCrimp One-Piece | B, D |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Black tube, specifically compounded for temperature and chemical resistance, oil resistant. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Color | Blue |
| Cover | Synthetic rubber, blue… weather, oil, fuel, ozone and abrasion-resistant. |
| Series | TR1HT |
| Branding | ALFAGOMMA® High Temp 1AT/1SN ID … WP …Mpa (…PSI) – SAE 100R1AT – EN 853 1SN DN …Q/YR |
| Reinforcement | One high tensile steel wire braid. |
| category_path | High Temp Hydraulic Hoses |
| General Applications | Wherever low or continuous high temperatures or fluid compatibility is a problem, this high quality, high performance hose solves the problem. Also ideal for use where greatly extended service life under "normal" conditions is desired. |
| Air Temperature [Max] 1 | 250 ºF, 121 ºC |
| Max. Working Pressure 2 | 3630 psi |
| Operating Temperature [Max] | 300 ºF, 150 ºC |
| Constant Operation Service Temperature Range | -40 to 300 ºF, -40 to 150 ºC |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AF1 |
| Temperature | ≤ 300 °F |
