Description
Single and double compact wire braid hydraulic hose with SUPERTUFF cover – AT3KST AT3KST – Single or double wire braid Meets or exceeds SAE 100 R17 Meets or exceeds EN 857 1SC (Sizes -04 and -06) MSHA IC-152/7 approved flame resistance
ALFAGOMMA®

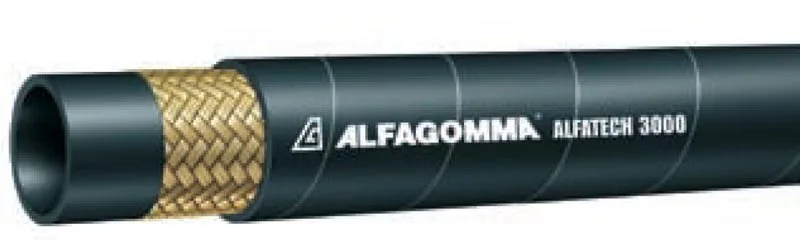

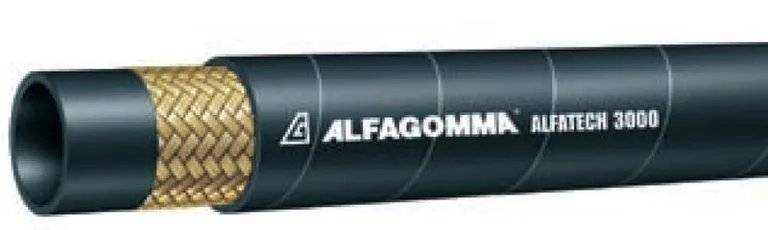

Alfatech 3000 Supertuff Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- SUPERTUFF Information
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 1/4 in, 6.4 mm, 3/8 in, 9.5 mm, 1/2 in, 12.7 mm, 1 in, 25.4 mm |
|---|---|
| OD | 0.47 in, 2.0 mm, 0.61 in, 15.4 mm, 0.76 in, 19.2 mm, 1.40 in, 35.5 mm |
| Weight | 0.12 lbs/ft, 0.18 lbs/ft, 0.25 lbs/ft, 0.86 lbs/ft |
| Size Code | 04, 06, 08, 16 |
| Min. Bend Radius | 1.9 in, 48.3 mm, 2.5 in, 63.5 mm, 3.5 in, 88.9 mm, 6.0 in, 152.4 mm |
| Max. Working Pressure | 3250 psi, 3000 psi |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. Include "EN 857 1SC" on layline. Single wire braid. |
| Tube | Synthetic Rubber, Black |
| Type | Single Steel Wire Braid |
| Brand | ALFAGOMMA® |
| Color | Black |
| Cover | Synthetic Rubber, Black.. Weather Oil, Fuel, Ozone and Abrasion-Resistant |
| Series | AT3KST |
| Branding | ALFAGOMMA® AT3K SUPERTUFF ID …WP …MPa (…PSI) – SAE 100R17 – DN … MSHA IC-152/7 – Q/YR |
| Reinforcement | One or Two Layer High Tensile Steel Wire Braid |
| category_path | Alfatech Supertuff Hydraulic Hoses |
| General Applications | Medium pressure service with petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. |
| Air Maximum Temperature | 160 ºF, 70 ºC |
| Service Temperature Range | -40 to 212 ºF, -40 to 100 ºC |
| Maximum Operating Temperature | 257 ºF, 125 ºC |
| Coupling Recommendations AlfaCrimp One-Piece | B |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AF1 |
| Temperature | -40–212 °F |
