Description
Alfabiotech 5500 Plus MINETUFF – ABTP5K Hydraulic Hose ABTP5K – 4 wire spiral Exceeds SAE 100R13 all sizes ISO 18752/CC 1,000,000+ impulse cycles all sizes MSHA IC-152/16 approved flame resistance
ALFAGOMMA®

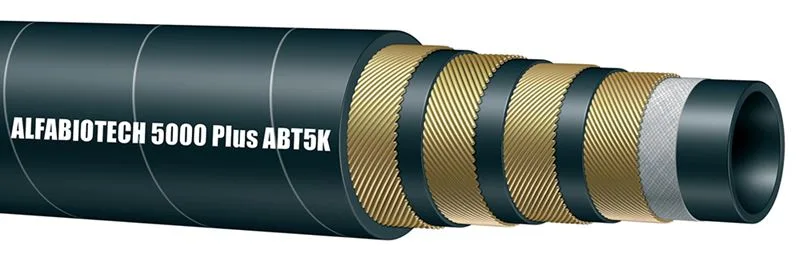

Alfabiotech ABTP5K Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Alfabiotech by Alfagommau00ae Information
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- MINETUFF Information
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 3/4 in, 19.1 mm, 1 in, 25.4 mm |
|---|---|
| OD | 1.22 in, 31.0 mm, 1.51 in, 38.3 mm |
| Weight | 0.89 lbs/ft, 1.30 lbs/ft |
| Size Code | 12, 16 |
| Min. Bend. Radius | 7.1 in, 180.3 mm, 8.3 in, 210.8 mm |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Cover | Abrasion, ozone and hydrocarbon resistant synthetic rubber. |
| Length | Random |
| Series | ABTP5K |
| Branding | ALFAGOMMA® ALFABIOTECH 5K PLUS MINETUFF … WP 38 MPa (5500 PSI) – exceeds ISO 18752/CC – SAE 100 R13 – MSHA IC-152/16 – MADE IN ITALY |
| Reinforcement | Four high tensile steel spirals. |
| category_path | Alfabiotech Minetuff Hydraulic Hoses |
| General Applications | Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. |
| Max. Working Pressure | 5500 psi |
| Service Temperature [Max] | 250 ºF, 121 ºC |
| Service Temperature [Min] | -40 ºF, -40 ºC |
| Coupling Recommendations Two-Piece Ferrule Interlock | XF2 |
| Pressure | 5,500 psi |
| Temperature | -40–250 °F |
