Description
Alfabiotech 2000 MINETUFF – ABT2K Hydraulic Hose ABT2K – 4 Spirals MSHA IC-152/16 Approved Flame Resistance ISO 18752/CC 1,000,000+ impulse cycles all sizes
ALFAGOMMA®

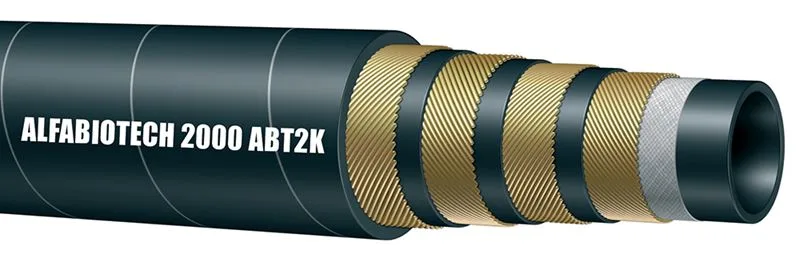

Alfabiotech ABT2K Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Download Product Catalog Page
- Alfabiotech by Alfagommau00ae Information
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- MINETUFF Information
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 2 1/2 in, 63.5 mm, 3 in, 76.2 mm |
|---|---|
| OD | 3.11 in, 79.0 mm, 3.64 in, 92.5 mm |
| Weight | 3.33 lbs/ft, 3.64 lbs/ft |
| Size Code | 40, 48 |
| Min. Bend. Radius | 28.3 in, 718.8 mm, 33.0 in, 838.2 mm |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. Slim Hole Rotary Hose Working Pressure 3200 psi, Hydraulic Service 2000 psi. |
| Tube | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Color | Black |
| Cover | Minetuff Abrasion, Ozone, Hydrocarbon and Flame Resistant Synthetic Pin Pricked Rubber. |
| Length | 100 feet. 200 foot lengths available upon request. |
| Series | ABT2K |
| Branding | ALFAGOMMA® Alfabiotech 2K Minetuff 2000 PSI Hydraulic Service – 3200 PSI Slim Hole Rotary Service MSHA IC-152/16 Made in Italy |
| Construction | 4 Spiral |
| Reinforcement | Four high tensile steel spirals. |
| category_path | Alfabiotech Minetuff Hydraulic Hoses |
| General Applications | Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. Rotary Hose, Specially Designed for use in Portable, Work-Over and Seismograph Drilling Rigs. |
| Max. Working Pressure | 3200 psi |
| Ambient Temperature Range | -40 to 200 ºF, -40 to 100 ºC |
| Note for Max. Working Pressure | Minimum burst pressure 4-to-1 hydraulic service/2.5-to-1 slim hole rotary. |
| Constant Operation Temperature [Max] | 250 ºF, 121 ºC |
| Constant Operation Temperature [Min] | -40 ºF, -40 ºC |
| Coupling Recommendations Two-Piece Interlock Ferrule External Skive | VS4 |
| Pressure | 3,200 psi |
| Temperature | -40–250 °F |
