Piranhaflex™
Piranhaflex™ Series PFP354
Request for quote
- Download Product Catalog Page
- Quality and Advantages - Piranhaflex
- One-Piece and Two-Piece Ferrules/Fittings
- P400 Portable Service Crimper and P402 Tooling
- Hose Cutters Download Product Catalog Page
- Hose and Fitting Compatibility
- Piranha Bonding Capabilities
- Cautionary and Warranty Statement
Additional information
| ID | 1/4 in, 6.4 mm, 3/8 in, 9.7 mm, 1/2 in, 13.1 mm |
|---|---|
| OD | 0.496 in, 12.6 mm, 0.650 in, 16.5 mm, 0.834 in, 21.2 mm |
| Weight | 0.06 lbs/ft, 0.11 lbs/ft, 0.16 lbs/ft |
| Size Code | 04, 06, 08 |
| Min. Bending Radius | 1.50 in, 38 mm, 2.00 in, 51 mm, 3.00 in, 76 mm |
| Max. Working Pressure SAE (SF: 4:1) | 2750 psi, 2250 psi, 2000 psi |
| Coupling Recommendations One-Piece Carbon Steel | P-04XX-XXXX, P-06XX-XXXX, P-08XX-XXXX |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | PFR-04, PFR-06, PFR-08 |
| Tube | Nylon |
| Type | Hydraulic Hose |
| Brand | Piranhaflex™ |
| Color | Black |
| Cover | Abrasion resistant polyurethane with Slither® additive. Available with conductive black pin-pricked cover. |
| Style | Braided |
| Series | PFP354 |
| Packaging | • Boxed 250' reels or boxed 50' coils. • No more than two pieces per 250' reel. No piece less than 50'. |
| Performance | Medium Pressure Hydraulic Applications |
| Reel Length | 250 ft |
| Reinforcement | Braided high tensile strength fibers |
| category_path | 100R7 Hydraulic Hose |
| Approved Fittings | P Series One-Piece Carbon Steel P Series One-Piece Stainless A Series Two-Piece (PFR ferrule) |
| Compliance Details | Compliances Size ANSI A92.2^ (1/8" to 1/2") REACH All sizes SAE 100R7 All sizes SAE J517 All sizes ^For vehicle mounted aerial devices |
| General Applications | Industrial equipment and vehicles (construction, agriculture, material handling, etc.) Hydraulic oil and lubrication lines |

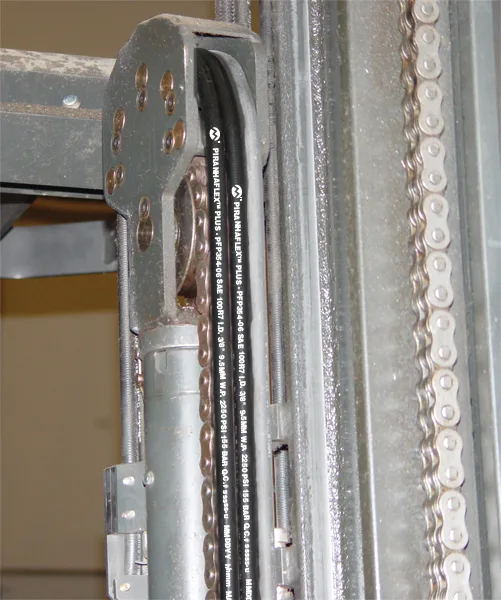

| Features and Advantages | • Slither® Cover – Slick Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful when routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks. • Abrasion Resistant – Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. • Lightweight – Approximately 37% lighter weight than similar rubber hoses. • Low Temperature Flex – Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. • Pin Pricked Cover – Allows trapped gases to escape when necessary, reducing the risk of cover blistering. |
| Service Temperature Range | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
| Max. Working Pressure ANSI (SF: 3:1) | 3000 psi |
| Temperature | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
