Description
Made in the USA
Piranhaflex™

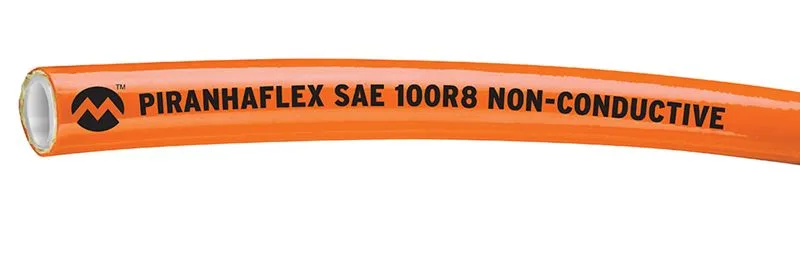

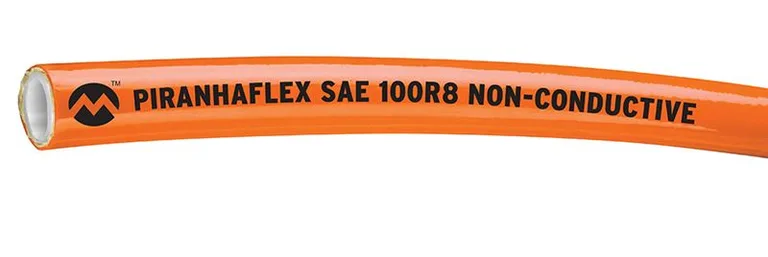

Piranhaflex™ Series PF528NC
Request for quote
- Download Product Catalog Page
- Quality and Advantages - Piranhaflex
- One-Piece and Two-Piece Ferrules/Fittings
- P400 Portable Service Crimper and P402 Tooling
- Hose Cutters Download Product Catalog Page
- Hose and Fitting Compatibility
- Piranha Bonding Capabilities
- Cautionary and Warranty Statement
Additional information
| ID | 3/16 in, 4.8 mm, 1/4 in, 6.5 mm, 3/8 in, 9.70 mm, 1/2 in, 12.9 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm |
|---|---|
| OD | 0.475 in, 12.1 mm, 0.584 in, 14.8 mm, 0.75 in, 19.1 mm, 0.935 in, 23.7 mm, 1.22 in, 30.9 mm, 1.620 in, 41.1 mm |
| Weight | 0.073 lbs/ft, 0.112 lbs/ft, 0.154 lbs/ft, 0.236 lbs/ft, 0.352 lbs/ft, 0.584 lbs/ft |
| Size Code | 03, 04, 06, 08, 12, 16 |
| Min. Bending Radius | 0.75 in, 19 mm, 2.00 in, 50 mm, 2.50 in, 64 mm, 3.50 in, 89 mm, 4.50 in, 114 mm, 6.00 in, 152 mm |
| Max. Working Pressure | 5000 psi, 4000 psi, 3500 psi, 2250 psi, 2000 psi |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AFX-03, AFX-04, AFX-06, AFX-08, AFX-12 |
| Note | Non-stocked size. Minimum order quantity of 5,000 feet generally applies. Contact Kuriyama Customer Service for details. |
| Tube | Nylon |
| Type | Hydraulic Hose |
| Brand | Piranhaflex™ |
| Cover | Abrasion resistant polyurethane. Available with non-conductive orange cover. |
| Series | PF528NC |
| Packaging | • Boxed 250' reels or boxed 50' coils. • No more than two pieces per 250' reel. No piece less than 50'. |
| Reel Length | 250 ft |
| Reinforcement | Braided, high tensile strength fiber |
| category_path | 100R8 Hydraulic Hose |
| Approved Fittings | A Series Two-Piece (AFX ferrule) |
| Compliance Details | Compliances Size REACH All sizes |
| General Applications | High pressure hydraulic applications Industrial equipment and vehicles (construction, agriculture, material handling, etc.) Aerial equipment (PF528NC only) Hydraulic oil and lubrication lines Hydraulic tools |
| Features and Advantages | • Kink Resistant Technology – Proprietary design shown to exhibit 50% better resistance to kink initiation and 17% less force to bend versus competitive 100R8 hose in comparison testing. • Abrasion Resistant – Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. • Lightweight – Approximately 24% lighter weight than similar rubber hoses. • Low Temperature Flex – Designed to flex at temperatures as low as -65°F; well suited for cold storage applications. |
| Service Temperature Range | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
| Temperature | -65°F (-54°C) to +200°F (+93°C) for petroleum based hydraulic fluids |
