Description
Made in The USA
Piranhaflex™

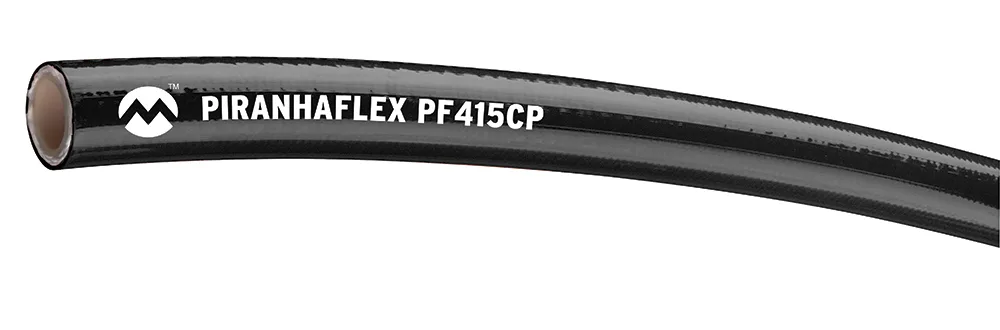

Piranhaflex™ Series PF415CP
Request for quote
- Download Product Catalog Page
- Quality and Advantages - Piranhaflex
- One-Piece and Two-Piece Ferrules/Fittings
- P400 Portable Service Crimper and P402 Tooling
- Hose Cutters Download Product Catalog Page
- Hose and Fitting Compatibility
- Piranha Bonding Capabilities
- Cautionary and Warranty Statement
Additional information
| ID | 1/4 in, 6.4 mm, 5/16 in, 8.1 mm, 3/8 in, 9.7 mm, 1/2 in, 13.1 mm |
|---|---|
| OD | 0.410 in, 10.4 mm, 0.520 in, 13.2 mm, 0.610 in, 15.5 mm, 0.750 in, 19.1 mm |
| Weight | 0.05 lbs/ft, 0.07 lbs/ft, 0.1 lbs/ft, 0.12 lbs/ft |
| Size Code | 04, 05, 06, 08 |
| Min. Bending Radius | 1.50 in, 38.1 mm, 1.75 in, 44.5 mm, 2.50 in, 63.5 mm, 3.00 in, 76.2 mm |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | PFR3-04, PFR3-05, PFR3-06, PFR3-08 |

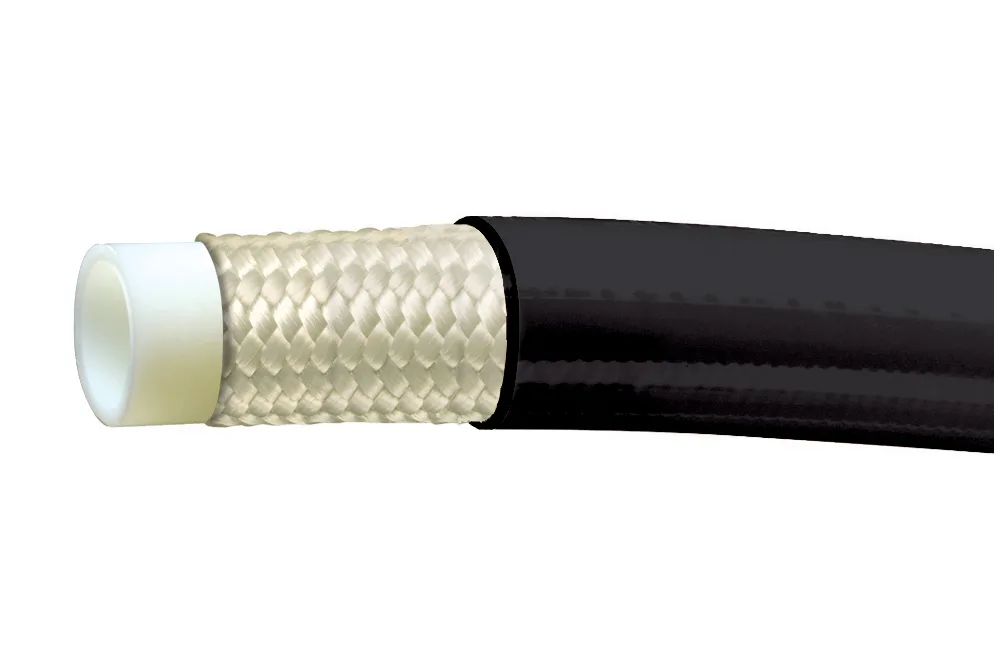

| Tube | Nylon |
| Type | General Purpose Pressure Hose |
| Brand | Piranhaflex™ |
| Cover | Pin pricked, abrasion resistant, conductive polyurethane |
| Packaging | • Boxed 250' long reels. • No more than two pieces per 250' reel. No piece less than 50'. |
| Reel Length | 250 ft |
| Reinforcement | Braided high tensile strength fibers |
| category_path | Piranhaflex Thermoplastic Hydraulic Hoses |
| Approved Fittings | A Series Two-Piece (PFR ferrule) |
| Compliance Details | Compliances Size SAE 100R3* All sizes REACH All sizes *meets or exceeds |
| General Applications | Lower pressure hydraulic applications Industrial equipment and vehicles, such as used in construction, agriculture, material handling |
| Max. Working Pressure | 1500 psi |
| Features and Advantage | Isobaric – Consistent 1,500 PSI working pressure regardless of hose size. Eliminates user risk of hose misapplication within a given pressure system. Abrasion Resistant – Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces. Lightweight – Approximately 45% lighter weight than similar rubber hoses. Pin Pricked Cover – Allows for the escape of gasses should they potentially become trapped between the layers, preventing instances of cover blistering. |
| Service Temperature Range | -40 ºF (-40 ºC) to 200 ºF (93 ºC) for petroleum based hydraulic fluids |
| Temperature | -40 °F (-40 °C) to 200 °F (93 °C) for petroleum based hydraulic fluids |
| Pressure | 1,500 psi |
