Description
One-wire braid hydraulic hose – TR5 TR5 – One-wire braid-reinforced Meets or exceeds SAE 100 R5 SAE J1402 DOT All FM VSS 106
ALFAGOMMA®

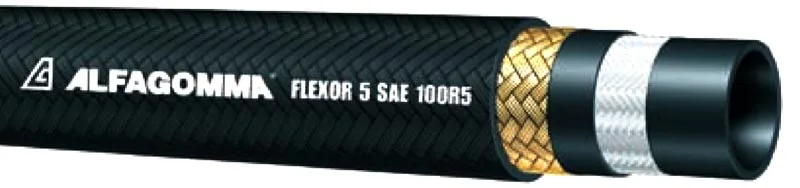

Flexor 5 Hydraulic Hose
Request for quote
- Download Product Catalog Page
- MINETUFF Information
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 3/16 in, 4.8 mm, 1/4 in, 6.4 mm, 5/16 in, 7.9 mm, 13/32 in, 10.3 mm, 1/2 in, 12.7 mm, 5/8 in, 15.9 mm, 7/8 in, 22.2 mm, 1 1/8 in, 28.6 mm, 1 3/8 in, 34.9 mm, 1 13/16 in, 46.0 mm |
|---|---|
| OD | 0.52 in, 13.2 mm, 0.58 in, 14.8 mm, 0.68 in, 17.3 mm, 0.77 in, 19.5 mm, 0.92 in, 23.4 mm, 1.08 in, 27.4 mm, 1.24 in, 31.4 mm, 1.50 in, 38.1 mm, 1.75 in, 44.5 mm, 2.22 in, 56.4 mm |
| Weight | 0.16 lbs/ft, 0.19 lbs/ft, 0.24 lbs/ft, 0.28 lbs/ft, 0.38 lbs/ft, 0.46 lbs/ft, 0.47 lbs/ft, 0.58 lbs/ft, 0.72 lbs/ft, 0.91 lbs/ft |
| Size Code | 04, 05, 06, 08, 10, 12, 16, 20, 24, 32 |
| Min. Bend Radius | 3.0 in, 76.2 mm, 3.4 in, 86.4 mm, 4.0 in, 101.6 mm, 4.6 in, 116.8 mm, 5.5 in, 149.7 mm, 6.5 in, 165.1 mm, 7.3 in, 185.4 mm, 9.0 in, 228.6 mm, 10.5 in, 266.7 mm, 13.2 in, 335.3 mm |
| Max. Working Pressure | 3000 psi, 2250 psi, 2000 psi, 1750 psi, 1500 psi, 800 psi, 625 psi, 500 psi, 350 psi |
| Coupling Recommendations Two-Piece Insert Non-Skive | A-03XX, A-04XX, A-05XX, A-06XX, A-08XX, A-10XX, A-14XX, A-18XX, A-22XX, A-29XX |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AFX-03, AFX-04, AFX-05, AFX-06, AFX-08, AFX-10, AFX-12, AFX-16, AFX-20, AFX-32 |
| Note | Hose cover does not need to be removed before attaching couplings. DOT Type AII approved and branded. Hoses supplied on reels. Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Oil-resistant synthetic rubber. |
| Type | Wire Braid Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Cover | Polyester Textile Braid. |
| Style | One-Wire Braid |
| Series | TR5 |
| Branding | ALFAGOMMA® FLEXOR 5 ID …WP …Mpa (…PSI) SAE 100 R5 |
| Reinforcement | One high tensile steel braid. |
| category_path | Flexor Hydraulic Hoses |
| General Applications | Medium pressure service hydraulic petroleumbased oil line in impulse applications; lube oil, diesel fuel lines and oil for Bio-diesel; applications such as air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission coolant, engine coolant and filtration lines. Meets or exceeds requirements of SAE 100 R5 for traditional hydraulic applications. |
| Air Maximum Temperature | 160 ºF, 70 ºC |
| Industry Standards/Certifications | SAE 100 R5, SAE J1402 |
| Constant Operation Temperature [Max] | 212 ºF, 100 ºC |
| Constant Operation Temperature [Min] | -40 ºF, -40 ºC |
| Temperature | -40–212 °F |
