Description
Double compact wire braid hydraulic hose on easy-to-handle reels – TF2TL TWIN Meets or exceeds EN 857 2SC and exceeds SAE 100 R16 MSHA IC-152/16 approved flame resistance
ALFAGOMMA®

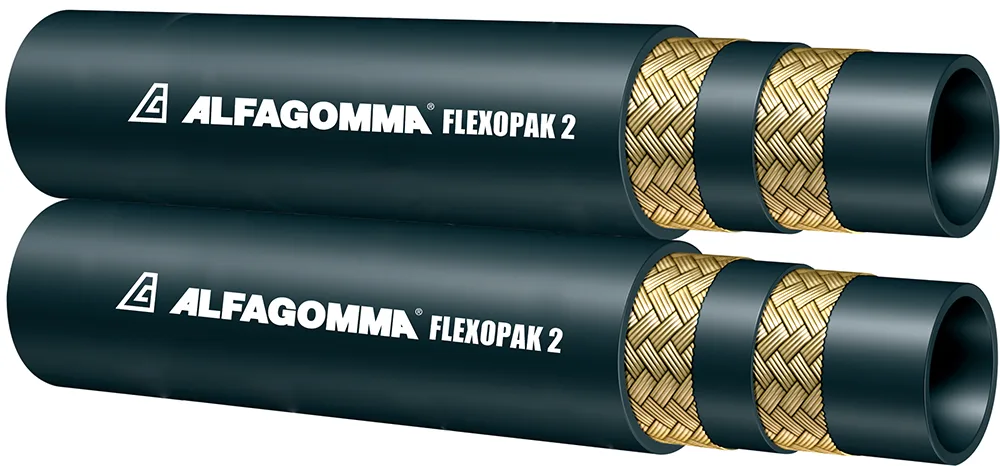

Flexopak 2 TF2TL TWIN Minetuff Hydraulic Hose
Request for quote
Additional information
| ID | 3/8 in, 9.5 mm, 1/2 in, 12.7 mm |
|---|---|
| OD | 0.66 in, 18.8 mm, 0.81 in, 20.6 mm |
| Weight | 0.53 lbs/ft, 0.71 lbs/ft |
| Size Code | 06, 08 |
| Min. Bend. Radius | 2.2 in, 55.9 mm, 3.5 in, 88.9 mm |
| Max. Working Pressure | 5000 psi, 4500 psi |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Synthetic Rubber, Black. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Color | Black |
| Cover | Synthetic rubber, black… weather, oil, fuel, ozone and excellent abrasion-resistant. |
| Series | TF2TL TWIN |
| Branding | ALFAGOMMA® FLEXOPAK 2 ID …WP … MPa (…PSI) – EXCEEDS SAE 100 R16 – EN 857 2SC …DN MSHA IC-152/16 …Q/YR |
| Reinforcement | Two high tensile steel wire braids, separated by a layer of synthetic rubber. |
| category_path | Flexopak |
| General Applications | High pressure service with tight bends with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, air and water. Excellent impulse performance, exceeding 1,000,000 cycles when tested with appropriate ALFAGOMMA® couplings. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. |
| Air Temperature [Max] | 160 ºF, 70 ºC |
| Operation Temperature [Max] | 257 ºF, 125 ºC |
| Constant Operation Service Temperature Range | -40 to 212 ºF, -40 to 100 ºC |
| Coupling Recommendations AlfaCrimp One-Piece | B |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AF1 |
| Temperature | ≤ 160 °F |
