Description
Alfabiotech 4000 MINETUFF – ABT4K Hydraulic Hose ABT4K – 4 wire spiral Exceeds SAE 100R12 sizes 3/4″ and 1″ Exceeds EN856 4SH sizes 1 1/2″ and 2″ ISO 18752/CC 1,000,000+ impulse cycles all sizes MSHA IC-152/16 approved flame resistance
ALFAGOMMA®

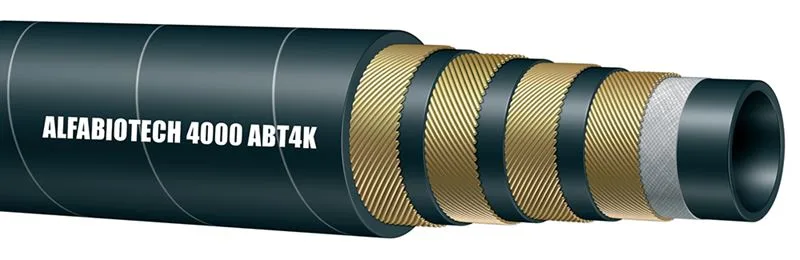

Alfabiotech ABT4K Hydraulic Hose
Request for quote
- Download Product Catalog Page
- Alfabiotech by Alfagommau00ae Information
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- MINETUFF Information
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 3/8 in, 9.5 mm, 1/2 in, 12.7 mm, 5/8 in, 15.9 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm, 1 1/4 in, 31.8 mm, 1 1/2 in, 38.1 mm, 2 in, 50.8 mm |
|---|---|
| OD | 0.79 in, 20.1 mm, 0.91 in, 23.1 mm, 1.04 in, 26.4 mm, 1.16 in, 29.5 mm, 1.48 in, 37.6 mm, 1.80 in, 45.7 mm, 2.04 in, 51.8 mm, 2.63 in, 66.8 mm |
| Weight | 0.42 lbs/ft, 0.51 lbs/ft, 0.63 lbs/ft, 0.83 lbs/ft, 1.11 lbs/ft, 1.53 lbs/ft, 1.99 lbs/ft, 3.01 lbs/ft |
| Size Code | 06, 08, 10, 12, 16, 20, 24, 32 |
| Min. Bend. Radius | 2.9 in, 73.7 mm, 3.5 in, 88.9 mm, 4.6 in, 116.8 mm, 4.7 in, 119.4 mm, 5.9 in, 149.9 mm, 10.2 in, 259.1 mm, 16.5 in, 419.1 mm, 20.8 in, 528.3 mm |
| Max. Working Pressure | 4000 psi, 4200 psi |
| Coupling Recommendations AlfaCrimp One Piece | D, F |
| Coupling Recommendations Two-Piece Couplings Ferrule Interlock | AS4, XF2 |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Cover | Abrasion, ozone and hydrocarbon resistant synthetic rubber. |
| Length | Random |
| Series | ABT4K |
| Branding | ALFAGOMMA® ALFABIOTECH 4K MINETUFF … WP 28 MPa (4000 PSI) – ISO 18752/CC – MSHA IC-152/16 – MADE IN ITALY |
| Reinforcement | Four high tensile steel spirals. |
| category_path | Alfabiotech Minetuff Hydraulic Hoses |
| General Applications | Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. |
| Service Temperature [Max] | 250 ºF, 121 ºC |
| Service Temperature [Min] | -40 ºF, -40 ºC |
| Temperature | -40–250 °F |
