Description

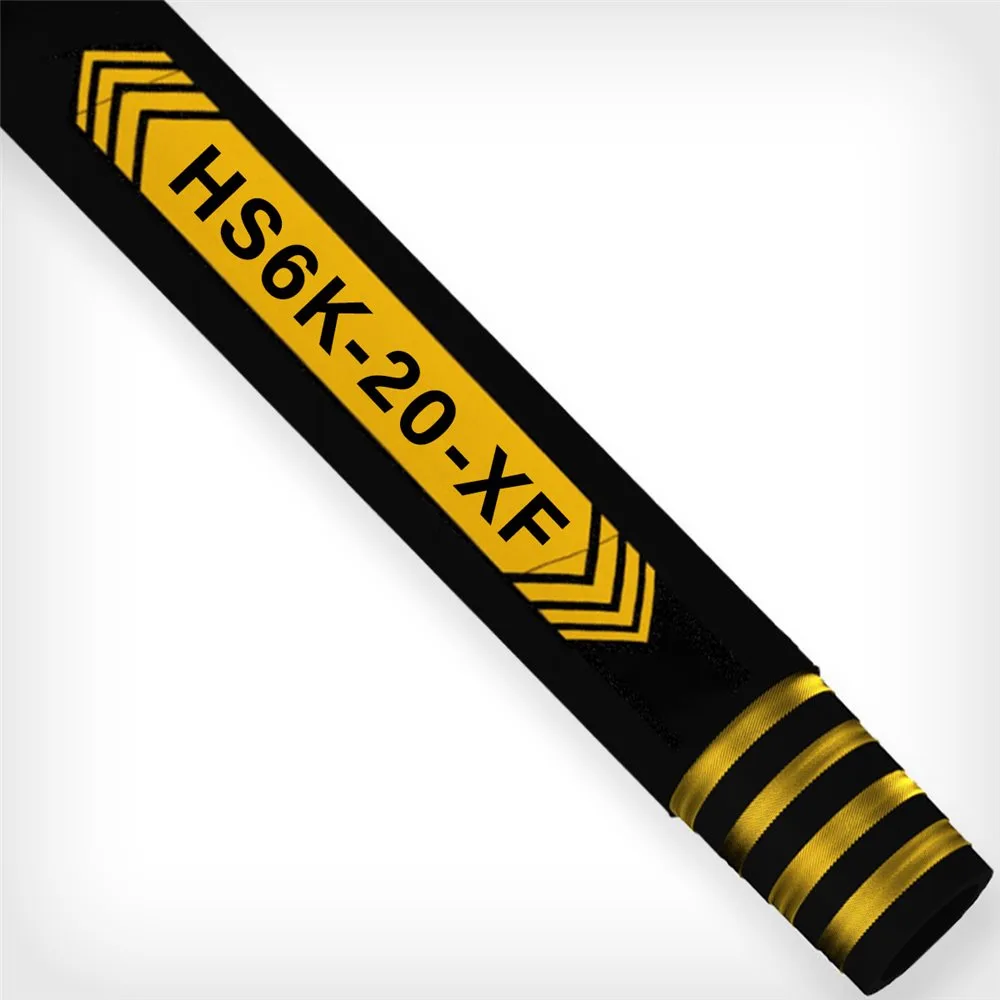

Extremely high pressure compact four and six spiral high abrasion resistance hydraulic hose. HS6K provides exceptional flexibility, rated to 1 million impluse cycles up to -24 at 1/2 minimum bend radius compared to SAE or DIN hoses.
Additional information
| O.D. (mm) | 45.4 |
|---|---|
| I.D. (inch) | 1-1/4 |
| O.D. (inch) | 1.79 |
| Weight (Kg/mt) | 2.80 |
| Weight (lbs/ft) | 1.88 |
| Bend Radius (mm) | 220 |
| Bend Radius (inch) | 8.70 |
| Burst Pressure (bar) | 1680 |
| Burst Pressure (psi) | 24,400 |
| Working Pressure (bar) | 420 |
| Working Pressure (psi) | 6100 |
| Pressure | 6,092 psi |
