Description
Single wire braid hydraulic hose on easy-to-handle reels – TR1MT – MINETUFF TR1MT – Single wire braid Meets or exceeds ISO 1436-1 – SAE 100 R1AT/R1S EN 853 1SN MSHA IC-152/16 approved flame resistance
ALFAGOMMA®

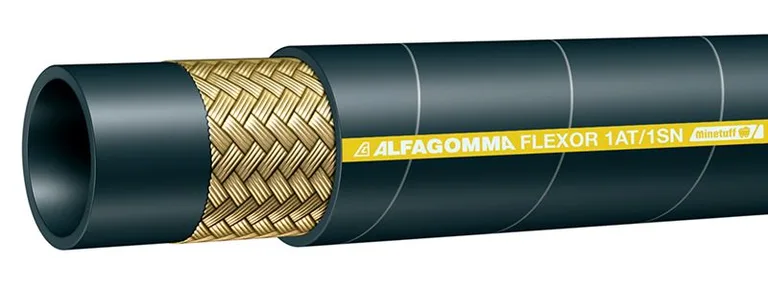

Flexor 1SN/R1AT Minetuff Hydraulic Hose
Request for quote
- Download Product Catalog Page
- MINETUFF Information
- Alfagommau00ae - Establishing a Legacy, Providing Excellence
- Technical Information for Kuriyama Hydraulic Connections Catalog
- Hose Selection Guide u2013 Agency Specifications
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures PSI
- Hose Selection Guide u2013 Maximum Recommended Operating Pressures MPa
- Maximum Recommended Hose End Working Pressures (PSI)
Additional information
| ID | 5/16 in, 7.9 mm, 3/8 in, 9.5 mm, 5/8 in, 15.9 mm, 3/4 in, 19.1 mm, 1 in, 25.4 mm, 2 in, 50.8 mm, 1/2 in, 12.7 mm, 1/4 in, 6.4 mm, 3/16 in, 4.8 mm, 1 1/4 in, 31.8 mm, 1 1/2 in, 38.1 mm |
|---|---|
| OD | 0.56 in, 14.2 mm, 0.65 in, 16.5 mm, 0.91 in, 23.0 mm, 1.06 in, 27.0 mm, 1.38 in, 35.0 mm, 2.46 in, 62.4 mm, 0.78 in, 19.9 mm, 0.50 in, 12.7 mm, 0.44 in, 11.2 mm, 1.66 in, 42.1 mm, 1.94 in, 49.2 mm |
| Weight | 0.16 lbs/ft, 0.20 lbs/ft, 0.29 lbs/ft, 0.37 lbs/ft, 0.59 lbs/ft, 1.24 lbs/ft, 0.26 lbs/ft, 0.13 lbs/ft, 0.10 lbs/ft, 0.71 lbs/ft, 0.90 lbs/ft |
| Size Code | 05, 06, 10, 12, 16, 32, 08, 04, 03, 20, 24 |
| Min. Bend. Radius | 4.5 in, 114.3 mm, 5.1 in, 129.5 mm, 7.9 in, 200.7 mm, 9.5 in, 241.3 mm, 11.8 in, 299.7 mm, 24.8 in, 629.9 mm, 7.1 in, 180.3 mm, 3.9 in, 99.1 mm, 3.6 in, 90 mm, 16.5 in, 419.1 mm, 19.7 in, 500.4 mm |
| Max. Working Pressure | 3120 psi, 2610 psi, 1900 psi, 1530 psi, 1280 psi, 600 psi, 2320 psi, 3250 psi, 3630 psi, 920 psi, 730 psi |
| Coupling Recommendations AlfaCrimp One-Piece | B, D |
| Note | Freight: Hydraulic Hose can be combined with other KOA products for qualifying prepaid freight orders. |
| Tube | Seamless Synthetic Rubber, Black… Oil-resistant. |
| Type | Hydraulic Hose |
| Brand | ALFAGOMMA® |
| Color | Black |
| Cover | Synthetic Rubber, Black… Weather, Oil, Fuel, Ozone and Abrasion-resistant. |
| Style | Single Wire Braid |
| Series | TR1MT |
| Branding | ALFAGOMMA® FLEXOR 1SN ID …WP …MPa (…PSI) – SAE 100 R1AT – EN 853 1SN MSHA IC-152/16… Q/YR DN … |
| Reinforcement | High tensile steel wire braid. |
| category_path | Flexor Hydraulic Hoses |
| General Applications | Medium pressure service with high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. |
| Air Maximum Temperature | 160 ºF, 70 ºC |
| Constant Operation Temperature [Max] | 212 ºF, 100 ºC |
| Constant Operation Temperature [Min] | -40 ºF, -40 ºC |
| Coupling Recommendations Two-Piece Ferrule Non-Skive | AF1 |
| Temperature | -40–212 °F |
